Ultra-Thin Profile
Exceptional Efficacy
Energy Savings

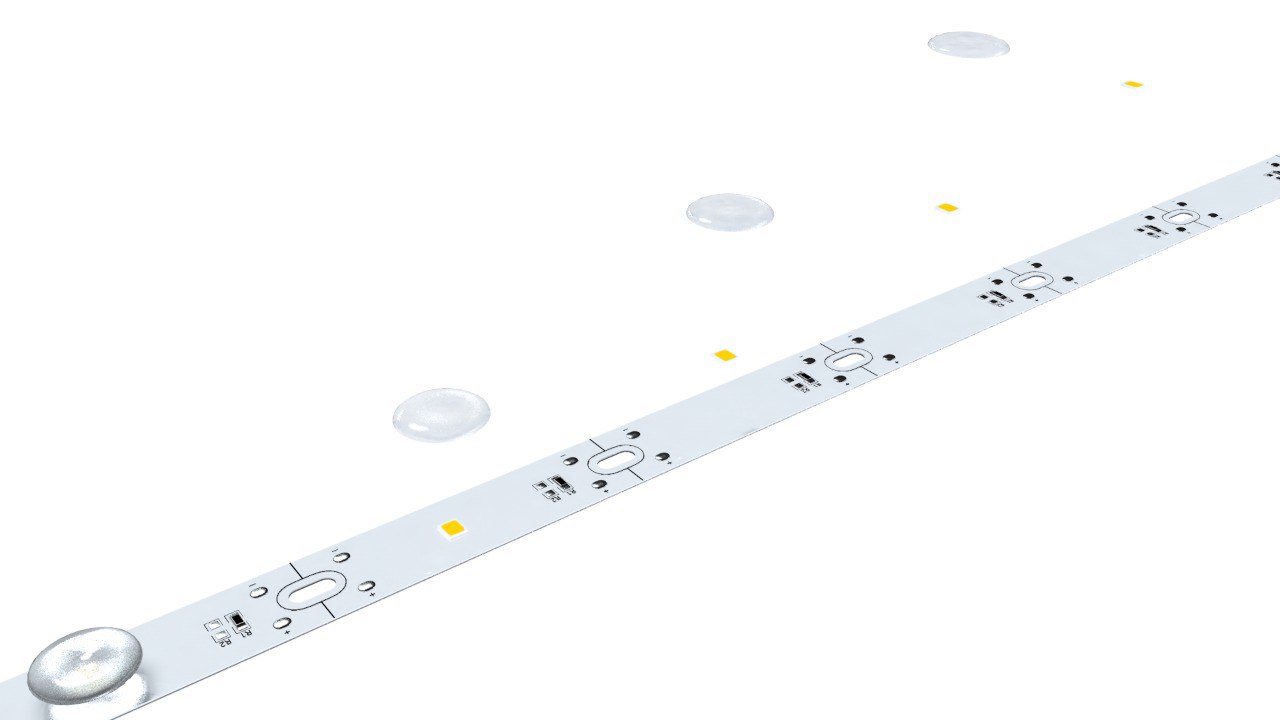

Our ultra-slim profile at just 20mm transforms bulky lightbox installations into sleek, modern displays. Mount flush against walls, fit into tight recesses, and achieve a premium aesthetic that traditional bars simply can't match.
Industry-leading luminous efficacy of 150 Lm/W means maximum brightness with minimum power draw. Every watt works harder, cutting electricity costs dramatically while delivering the uniform illumination your signage demands.

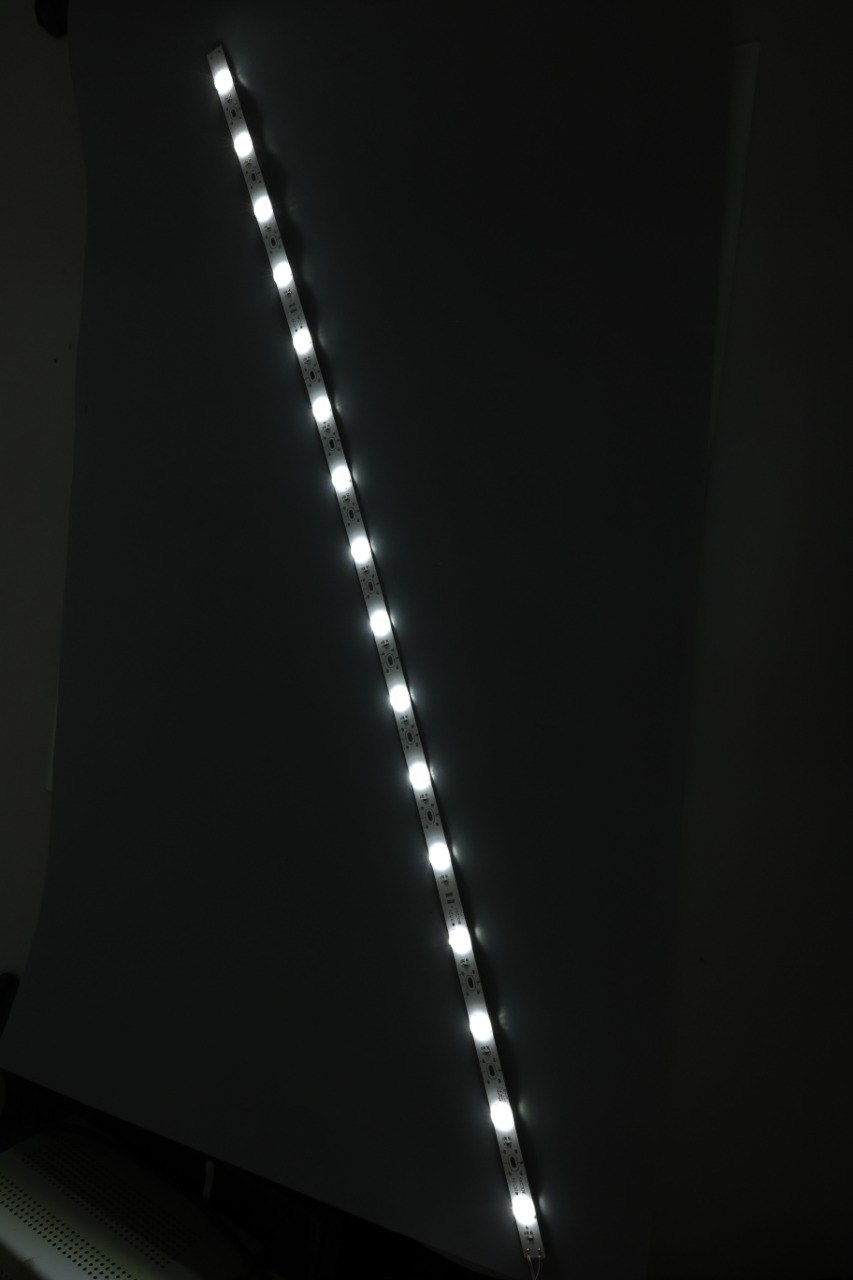

Cut at every single LED for precision-fit installations. No more awkward gaps or wasted offcuts. Whether your lightbox is 300mm or 3 meters, the bar fits perfectly — every time. Field-adjustable with just a pair of scissors.
| Optical Performance | |
| Luminous Efficacy | 150 Lm/W |
|---|---|
| CCT Options | 3000K / 4000K / 5000K / 6500K |
| CRI | Ra ≥ 80 (Ra ≥ 90 optional) |
| Beam Angle | 170° |
| Physical | |
| Profile Thickness | 20 mm |
| Width | 24 mm |
| Standard Lengths | 300 / 400 / 500 / 600 / 1000 / 1200 mm |
| Cutting Unit | Per single LED (every ~25mm) |
| Housing Material | Anodized Aluminum + PC Lens |
| Electrical | |
| Input Voltage | DC 24V |
| Power per Meter | 14.4 W/m (typ.) |
| Connectors | Plug-in terminal / Solderless |
| Environmental | |
| IP Rating | IP20 (IP44 / IP65 optional) |
| Operating Temp. | -20 °C ~ +45 °C |
| Rated Lifetime | 50,000 h (L70B50) |
| Certifications | CE · RoHS · TÜV (pending) |
With over 17 years of expertise, RISHANG is a leading manufacturer of professional LED linear lighting solutions. We serve clients across 50+ countries, delivering innovative products for architectural, commercial, and landscape illumination.
